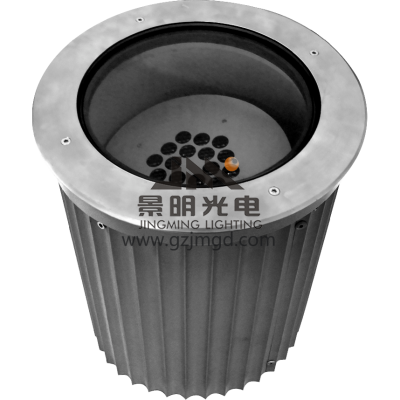

Buried JML-M270BC

Features:

The angle of light projection can be adjusted in many directions

All aluminum material design, novel appearance

High quality stainless steel panel

Deep anti glare function design

Waterproof treatment of patented structure

Low thermal resistance path cooling design

Professional optical design, high efficiency and uniform light output

Design of high efficiency, high PF value and low heating power supply

Outdoor lightning protection design

Parameters

Color: RGB full color, RGBW, regular white, warm white, amber yellow
Optical source high power 1W / 3W
The light output angle is 3 degrees, 8 degrees, 15 degrees, 30 degrees, 45 degrees, 60 degrees
Working temperature - 20 ℃ ~ 50 ℃
Storage temperature - 40 ℃ - 70 ℃
Working voltage: DC24 V, AC24 V, AC220 V
Control mode: DMX512
Protection grade: IP67
Service life: 50000 hours

Specification type	Shell	Light source	Power	Working voltage	Driving current	Color temperature
JML-M270BC-12M	Die cast aluminum	12X1W	12W	AC220V	340mA	monochrome
JML-M270BC-15M	Die cast aluminum	15X1W	15W	AC220V	340mA	monochrome
JML-M270BC-18M	Die cast aluminum	18X1W	18W	AC220V	340mA	monochrome
JML-M270BC-24M	Die cast aluminum	12X2W	24W	AC220V	680mA	monochrome
JML-M270BC-30M	Die cast aluminum	15X2W	30W	AC220V	680mA	monochrome
JML-M270BC-12R	Die cast aluminum	12X1W	12W	DC24V	3X340mA	RGB
JML-M270BC-15R	Die cast aluminum	15X1W	15W	DC24V	3X340mA	RGB
JML-M270BC-18R	Die cast aluminum	18X1W	18W	DC24V	3X340mA	RGB
JML-M270BC-24R	Die cast aluminum	12X2W	24W	DC24V	3X680mA	RGB
JML-M270BC-30R	Die cast aluminum	15X2W	30W	DC24V	3X680mA	RGB
