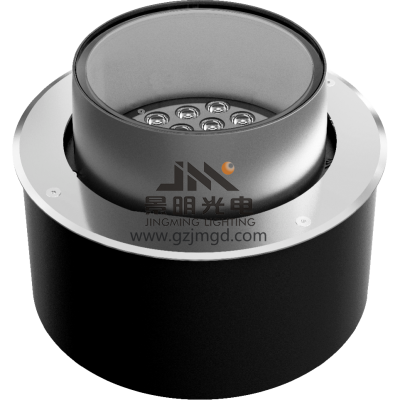

Features:
The angle of light projection can be adjusted in many directions
All aluminum material design, novel appearance
High quality stainless steel panel
Deep anti glare function design
Waterproof treatment of patented structure
Low thermal resistance path cooling design
Professional optical design, high efficiency and uniform light output
Design of high efficiency, high PF value and low heating power supply
Outdoor lightning protection design
Color: RGB full color, RGBW, regular white, warm white, amber yellow
Optical source high power 1W / 3W
The light output angle is 3 degrees, 8 degrees, 15 degrees, 30 degrees, 45 degrees, 60 degrees
Working temperature - 20 ℃ ~ 50 ℃
Storage temperature - 40 ℃ - 70 ℃
Working voltage: DC24 V, AC24 V, AC220 V
Control mode: DMX512
Protection grade: IP67
Service life: 50000 hours
| 常规角度 | ||||||
| 规格型号 | 外壳 | 光源 | 功率 | 工作电压 | 驱动电流 | 色温 |
| JML-M200RC-24M | 压铸铝 | 24X1W | 24W | AC220V | 340mA | 单色 |
| JML-M200RC-30M | 压铸铝 | 30X1W | 30W | AC220V | 340mA | 单色 |
| JML-M200RC-36M | 压铸铝 | 36X1W | 36W | AC220V | 340mA | 单色 |
| JML-M200RC-48M | 压铸铝 | 24X2W | 48W | AC220V | 680mA | 单色 |
| JML-M200RC-60M | 压铸铝 | 30X2W | 60W | AC220V | 680mA | 单色 |
| JML-M200RC-24R | 压铸铝 | 24X1W | 24W | DC24V | 3X340mA | RGB |
| JML-M200RC-30R | 压铸铝 | 30X1W | 30W | DC24V | 3X340mA | RGB |
| JML-M200RC-36R | 压铸铝 | 36X1W | 36W | DC24V | 3X340mA | RGB |
| JML-M200RC-48R | 压铸铝 | 24X2W | 48W | DC24V | 3X680mA | RGB |
| JML-M200RC-60R | 压铸铝 | 30X2W | 60W | DC24V | 3X680mA | RGB |
| 超小角度（3°） | ||||||
| 规格型号 | 外壳 | 光源 | 功率 | 工作电压 | 驱动电流 | 色温 |
| JML-M200RC-27M | 压铸铝 | 9X3W | 27W | AC220V | 1020mA | 单色 |
| JML-M200RC-36M | 压铸铝 | 12X3W | 36W | AC220V | 1020mA | 单色 |
| JML-M200RC-60M | 压铸铝 | 9X5W | 45W | AC220V | 1650mA | 单色 |
| JML-M200RC-27M | 压铸铝 | 12X5W | 60W | AC220V | 1650mA | 单色 |
