Location: Home > Products > Buried lights > Round buried lights

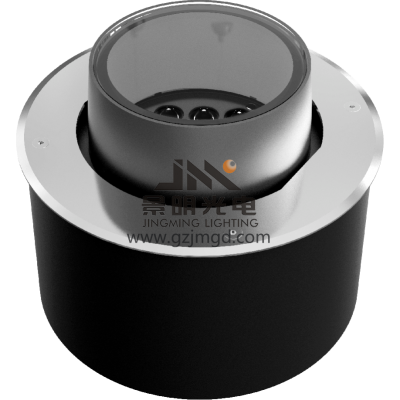

Buried JML-M160RC

Features:

The angle of light projection can be adjusted in many directions

All aluminum material design, novel appearance

High quality stainless steel panel

Deep anti glare function design

Waterproof treatment of patented structure

Low thermal resistance path cooling design

Professional optical design, high efficiency and uniform light output

Design of high efficiency, high PF value and low heating power supply

Outdoor lightning protection design

Parameters

Color: RGB full color, RGBW, regular white, warm white, amber yellow
Optical source high power 1W / 3W
The light output angle is 3 degrees, 8 degrees, 15 degrees, 30 degrees, 45 degrees, 60 degrees
Working temperature - 20 ℃ ~ 50 ℃
Storage temperature - 40 ℃ - 70 ℃
Working voltage: DC24 V, AC24 V, AC220 V
Control mode: DMX512
Protection grade: IP67
Service life: 50000 hours

常规角度
规格型号	外壳	光源	功率	工作电压	驱动电流	色温
JML-M160RC-12M	压铸铝	12X1W	12W	AC220V	340mA	单色
JML-M160RC-15M	压铸铝	15X1W	15W	AC220V	340mA	单色
JML-M160RC-18M	压铸铝	18X1W	18W	AC220V	340mA	单色
JML-M160RC-24M	压铸铝	12X2W	24W	AC220V	680mA	单色
JML-M160RC-30M	压铸铝	15X2W	30W	AC220V	680mA	单色
JML-M160RC-36M	压铸铝	18X2W	36W	AC220V	680mA	单色
JML-M160RC-12R	压铸铝	12X1W	12W	DC24V	3X340mA	RGB
JML-M160RC-15R	压铸铝	15X1W	15W	DC24V	3X340mA	RGB
JML-M160RC-18R	压铸铝	18X1W	18W	DC24V	3X340mA	RGB
JML-M160RC-24R	压铸铝	12X2W	24W	DC24V	3X680mA	RGB
JML-M160RC-30R	压铸铝	15X2W	30W	DC24V	3X680mA	RGB
JML-M160RC-36R	压铸铝	18X2W	36W	DC24V	3X680mA	RGB
超小角度（3°）
规格型号	外壳	光源	功率	工作电压	驱动电流	色温
JML-M160RC-18M	压铸铝	6X3W	15W	AC220V	1020mA	单色
JML-M160RC-30M	压铸铝	6X5W	30W	AC220V	1650mA	单色
