Location: Home > Products > Wall Washer >

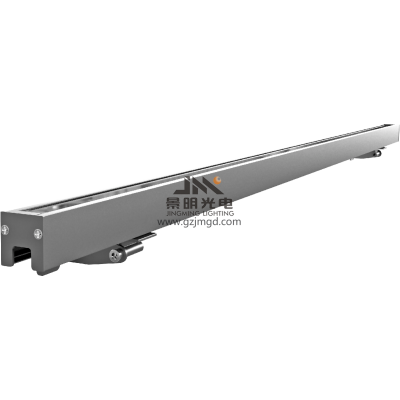

Linear JML-X29L

Features:

All aluminum material design, novel appearance

Fully toughened glass

Heat dissipation design of low thermal resistance path

Waterproof design of high heat conduction silica gel full filling

Thermoelectric separation design

Special protection design for outdoor lightning protection and static electricity (ESD)

Parameters

Color RGB full color, RGBW, positive white, warm white, amber
Light source high power 1W / 3W
The light output angle is 3 °, 8 °, 15 °, 30 °, 45 °, 60 °, and more angles are optional
Working temperature - 20 ℃ ~ 50 ℃
Storage temperature - 40 ℃ ~ 70 ℃
Working voltage: DC24V, AC24V, AC220V
Control mode DMX512
Protection class IP67
Service life 50000 hours

Specification type	Shell	Light source	Power	Working voltage	Driving current	Color temperature
JML-X29L-4.5M	Aluminium alloy	24PCS	4.5W	DC24V	500mm	monochrome
JML-X29L-6M	Aluminium alloy	30PCS	6W	DC24V	500mm	monochrome
JML-X29L-9M	Aluminium alloy	48PCS	9W	DC24V	1000mm	monochrome
JML-X29L-12M	Aluminium alloy	60PCS	12W	DC24V	1000mm	monochrome
JML-X29L-4.5R	Aluminium alloy	24PCS	4.5W	DC24V	500mm	RGB
JML-X29L-6R	Aluminium alloy	30PCS	6W	DC24V	500mm	RGB
JML-X29L-9R	Aluminium alloy	48PCS	9W	DC24V	1000mm	RGB
JML-X29L-12R	Aluminium alloy	60PCS	12W	DC24V	1000mm	RGB
