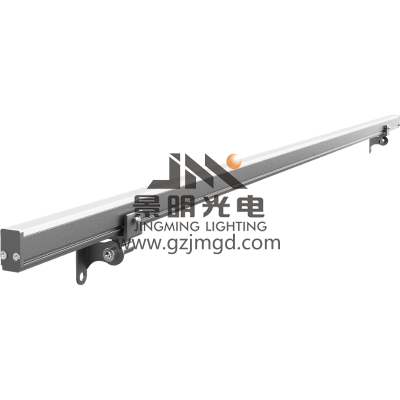

Linear JML-X13L

Features:

Ultra small volume design, convenient for installation in narrow space

Imported frosted anti glare lampshade

All aluminum material design, novel appearance

Heat dissipation design of low thermal resistance path

Waterproof design of high heat conduction silica gel

Thermoelectric separation design

Special protection design for outdoor lightning protection and static electricity (ESD)

Parameters

Color RGB full color, positive white, warm white, amber
Optical source 5050 / 0.3w 2835 / 0.2W
The light output angle is 120 °
Working temperature - 20 ℃ ~ 50 ℃
Storage temperature - 40 ℃ ~ 70 ℃
Working voltage: DC24V
Control mode DMX512
Protection grade: IP66
Service life: 50000 hours

Specification type	Shell	Light source	Power	Working voltage	Driving current	Color temperature
JML-X13L-6M	Aluminium alloy	24PCS	6W	DC24V	500mm	monochrome
JML-X13L-12M	Aluminium alloy	48PCS	12W	DC24V	1000mm	monochrome
JML-X13L-6R	Aluminium alloy	24PCS	6W	DC24V	500mm	RGB
JML-X13L-12R	Aluminium alloy	48PCS	12W	DC24V	1000mm	RGB
