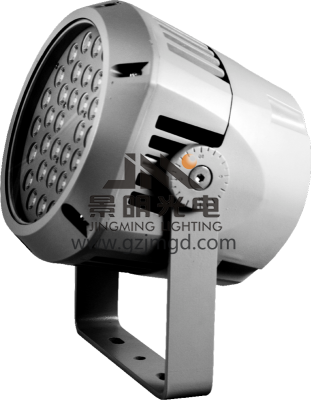

Spotlights JML-T220C

Features:

All aluminum material design, novel appearance

Deep anti glare design

Professional anti dazzle grille function

Patented structure waterproof treatment

Heat dissipation design of low thermal resistance path

Professional optical design, efficient and uniform light output

Design of high efficiency, high PF value and low heating power supply

Outdoor lightning protection design

Parameters

Color RGB full color, RGBW, positive white, warm white, succinic yellow

Optical source high power 1W / 3W

Light output angle: 3 °, 8 °, 15 °, 30 °, 45 °, 60 °, more angles are optional

Working temperature - 20 ℃ ~ 50 ℃

Storage temperature - 40 ℃ ~ 70 ℃

Working voltage: DC24V, AC24V, AC220V

Control mode DMX512

Protection grade: IP67

Service life: 50000 hours

Conventional angle
Specification type	Shell	Light source	Power	Working voltage	Driving current	Color temperature
JML-T220C-72M	Die cast aluminum	24X3W	72W	AC220V	1000mA	monochrome
JML-T220C-90M	Die cast aluminum	30X3W	90W	AC220V	1000mA	monochrome
JML-T220C-108M	Die cast aluminum	36X3W	108W	AC220V	1000mA	monochrome
JML-T220C-72R	Die cast aluminum	24X3W	72W	DC24V	1000mA	RGB
JML-T220C-90R	Die cast aluminum	30X3W	90W	DC24V	1000mA	RGB
JML-T220C-108R	Die cast aluminum	36X3W	108W	DC24V	1000mA	RGB
Conventional angle(3°)
Specification type	Shell	Light source	Power	Working voltage	Driving current	Color temperature
JML-T220C-27M	Die cast aluminum	9X3W	27W	AC220V	1020mA	monochrome
JML-T220C-36M	Die cast aluminum	12X3W	36W	AC220V	1020mA	monochrome
JML-T220C-45M	Die cast aluminum	9X5W	45W	AC220V	1650mA	monochrome
JML-T220C-60M	Die cast aluminum	12X5W	60W	AC220V	1650mA	monochrome
